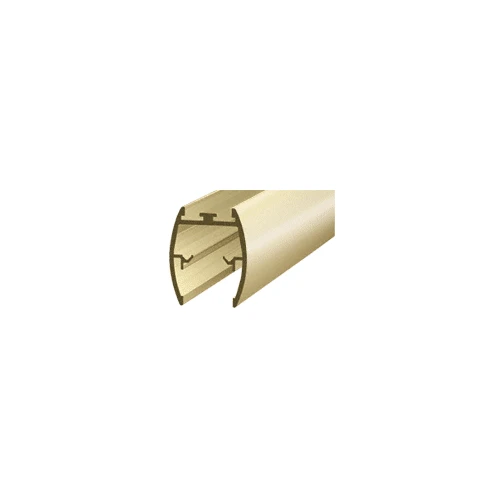

CRL DK61BGA Brite Gold Anodized 72″ Header For CK/DK Cottage Series Sliders

DK Cottage Series components were especially designed by CRL to add versatility to our Frameless Sliding Shower Door Kits. They allow the option of adding additional panels to create a designer enclosure, or simply construct your own sliding unit by combining the various parts. Stock lengths of Headers, Header Fillers, Side Jambs, Bottom Sills, Sidelite Sills, and Clear Polycarbonate Vertical Jambs, along with Top Hangers and other accessory items round out the items available. Use these components to build the enclosure you require, or we can assist with your design. Email or fax us a drawing (with dimensions) of the shower opening and we will put together a customized kit for you that will include everything you will need (except the glass and the silicone). Installation instructions are included in each custom kit.
NOTE: All fixed panels of glass must be 3/8″ (10 mm) thick.
SPECIFICATIONS:
Material: Extrusions (Aluminum), Towel Bar (Brass Tubing), Knob (Solid Brass)
Glass Thickness: 1/4″ or 3/8″ (6 or 10 mm) (Glass not included)
Recommended Maximum Slider Sizes: 1/4″ (6 mm) Glass: 60″ W x 72″ H (1.52 x 1.83 m) or 72″ W x 60″ H (1.83 x 1.52 m); 3/8″ (10 mm) Glass: 72″ W x 80″ H (1.83 x 2.03 m)
Glass Fabrication: Towel Bar – Two 1/2″ (12 mm) Diameter Holes, 24″ (610 mm) Center-to-Center; Knob – One 1/2″ (12 mm) Diameter Hole; Top Hangers – Four 1/2″ (12 mm) Diameter Holes (two per glass panel)
Product Warning:
Hardware Package includes Corners and Header Bracket required to convert Inline Shower Door Kit into an angled enclosure when used with the appropriate extrusions from above. Must be ordered separately. Polycarbonates are translucent in color.
